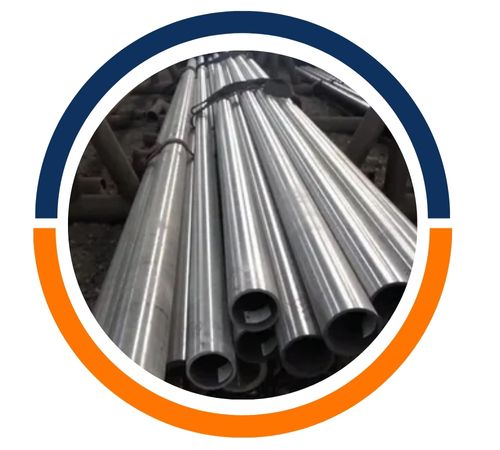

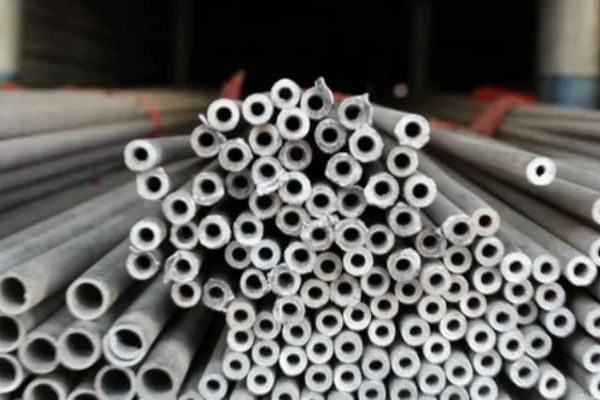

In the heart of Safat, Kuwait, Sayed Steel stands as a trusted partner for industry, bringing robust materials like Alloy Steel T91 Tubing directly to the projects that build our nation. We understand that the backbone of any major industrial endeavor lies in the quality of its components, which is why we are dedicated to supplying this advanced tubing with a commitment to reliability and performance that our clients have depended on for years.
The strength of T91 tubing comes from its sophisticated composition, primarily chromium and molybdenum with additions of vanadium and niobium. This specific blend gives it exceptional mechanical properties, including excellent creep strength, which means it can withstand intense heat and pressure over very long periods. This resistance to high-temperature degradation makes it far more durable than many standard alloys, offering a reliable lifespan in demanding environments.
| ASTM A213 T91 Specification & Standard | ASTM A213 T91, ASME SA213 T91 (with IBR Test Certificate) |
|---|---|
| SA 213 Gr T91 Specification | ASTM A213 & ASTM A209 BS/3059/ 90/ Part II/ 620 & 622 DIN/ 17175/ 13CrMo44 DIN/ 17175/ 10CrMo910 DIN/ 17175/ 15Mo3 |
| T91 Steel Tube Sch. & Swg. | 10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg., 3.6 mm Thk |
| ASTM A213 T91 Tubing Size | 6.35 mm OD to 101.6 mm OD |
| ASTM A213 T91 Pipe Thickness | 3-12mm |
| ASME SA213 Gr T91 Material Origin | European, Japanese, Korean, US, Russian, Indian (Strictly No Chinese Material) |
| Craft | Cold rolled and Cold drawn |
| ASTM A213 T91 Tube Type | Seamless / ERW / Welded / Fabricated |
| SA213 T91 Steel Tube available in Form of | Round, Square, Rectangular, Hydraulic Etc. |
| ASTM SA213 T91 Tube Tolerance | Cold drawn pipe: +/-0.1mm Cold rolled pipe: +/-0.05mm |
| ASME SA213 Grade T91 Tube Length | Standard Double & In Cut length also. |
| ASME SA213 Gr T91 Tube End | Plain End, Beveled End, Treaded |
| ASTM A213 T91 Additional Testing | NACE MR 0175, NACE TM0177, NACE TM0284, HIC TEST, SSC TEST, H2 SERVICE, IBR, etc. |
| Specialized in |
|
| ASME SA213 Grade T91 Tube Application & uses | Seamless Ferritic ASTM A213 T91 Tubing for High-Temperature Service |
| Grade | C≤ | Mn | P≤ | S≤ | Si≤ | Mo |
|---|---|---|---|---|---|---|
| SA213 T91 Composition |
0.07~0.14 |
0.30~0.60 |
0.02 |
0.02 |
0.20~0.50 |
0.85~1.05 |
| Grade | Tensile Strength, MPa | Yield Strength, MPa | Elongation, % | Hardness, HB |
|---|---|---|---|---|
| ASTM A213 T91 Tubing | 585 min | 415 min | 20 min | 250 max |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Outside Diameter | OD Tolerance | WT Tolerance | Ovality Tolerance | Cut Length Tolerance |
| OD≤ 12, 7 mm | ± 0, 13 mm | ± 15 % | – | + 3, 18 mm, – 0 mm |
| 12, 7 mm < OD ≤ 38, 1 mm | ± 0, 13 mm | ± 10 % | max, 1, 65 mm | + 3, 18 mm, – 0 mm |
| 38, 1 mm < OD ≤ 88, 9 mm | ± 0, 25 mm | ± 10 % | max, 2, 41 mm | + 4, 76 mm, – 0 mm |
Jaxon Steel is a leading manufacturer and distributor of high-quality Alloy Steel T91 Tubing in Safat, Kuwait. We provide top-grade steel materials and a diverse range of products, including Alloy Steel, Carbon Steel, Mild Steel, and Galvanized Steel. Our comprehensive inventory features Tubes, Pipes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. Dedicated to on-time delivery and outstanding customer service, we source only the best raw materials to guarantee superior performance in industrial applications with demanding specifications. Reach out to us today for all your Alloy Steel T91 Tubing requirements!
This unique combination of durability and heat resistance makes Alloy Steel T91 Tubing a go-to material for critical high-temperature systems. You’ll most often find it in the superheaters and reheaters of power generation boilers, in vital pipeline systems for the oil and gas sector, and in components for petrochemical plants. Essentially, wherever extreme temperatures and pressures are a constant challenge, T91 tubing provides the essential integrity to keep operations running safely and efficiently.
