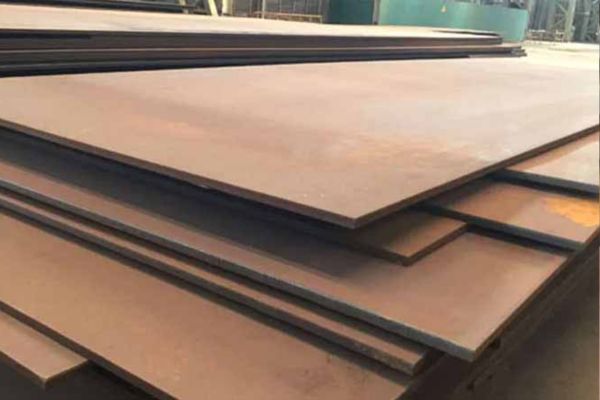

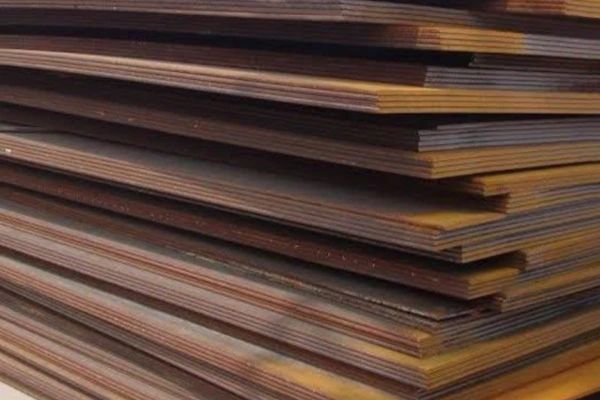

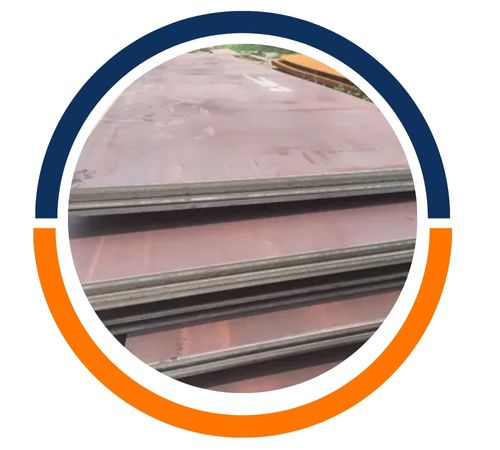

As a trusted name in Safat, Kuwait, Sayed Steel takes pride in supplying top-tier materials for demanding projects. Among our premier offerings is the ARCELOR 400 Sheet and Plates, a product line synonymous with reliability and exceptional strength. We understand the critical nature of your work, and this material is chosen specifically for its ability to perform under intense pressure, ensuring the integrity and longevity of your most important constructions and fabrications.
Crafted with precision, ARCELOR 400 is a boron steel alloy celebrated for its high tensile strength and remarkable toughness. The material’s composition is engineered to offer excellent mechanical properties, including a consistent hardness that stands up to heavy wear and impact. This makes it an incredibly durable choice, built to maintain its structural integrity over a long service life, even in challenging conditions. It’s a testament to modern metallurgical advancement.
Item: ARCELOR 400
Thickness : 5mm to 150mm
Length : 6,000mm to 12,000mm
Width : 1,500mm to 2,500mm
Heat Treatment: N, Q+T
Surface Point : EP, PE, HDP, SMP, PVDF
| Internal grade | Thk (mm) | %C Max | %Mn Max | %P Max | %S Max | %SI Max | %Cr Max | %Ni Max | %Mo Max | B Max | CE Max |
| SRDQH40 | Up to 20 | 0.16 | 1.60 | 0.025 | 0.010 | 0.70 | 0.50 | 0.25 | 0.25 | 40 ppm | 0.45 |
| SRDQH41 | 20.1 – 32.0 | 0.18 | 1.60 | 0.025 | 0.010 | 0.70 | 1.00 | 0.25 | 0.25 | 40 ppm | 0.48 |
| SRDQH42 | 32.1 – 50.0 | 0.22 | 1.60 | 0.025 | 0.010 | 0.70 | 1.40 | 0.50 | 0.60 | 40 ppm | 0.57 |
| SRDQH43 | 50.1 – 70.0 | 0.22 | 1.60 | 0.025 | 0.010 | 0.70 | 1.40 | 0.50 | 0.60 | 40 ppm | 0.65 |
| HARDNESS (BHN) | YS (MPa) | UTS (MPa) | %El (L0=50 mm) | Impact at -30°C (In Joules) | |
| Specified values | 370 – 430 | 900Min | 1100 | 10 | 30J Min (Longitudinal to rolling) |
| Typical indicative values for 20 mm | 390 – 410 | 1050 | 1240 | 12 | 40J |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| 1/8″ | 3/8″ | 3/4″ | 1-1/2″ | 3″ |
| 3/16″ | 1/2″ | 1″ | 2″ | 4″ |
| 1/4″ | 5/8″ | 1-1/4″ | 2-1/2″ | Â |
| *1/8″ thick plate is available in one size only 60″x 120″. The 3/6″ thick plate is available only as 48″ x 144″ and 96″ x 144″. | ||||
| Thickness | Width | Length |
| 4 | 2000 | 6000 |
| 5 | 2000 | 6000 |
| 6 | 2000 | 6000 |
| 6 | 2500 | 6000 |
| 8 | 2000 | 6000 |
| 8 | 2500 | 6000 |
| 10 | 2000 | 6000 |
| 12 | 2000 | 6000 |
| 15 | 2000 | 6000 |
| 16 | 2000 | 6000 |
| 20 | 2000 | 6000 |
| 25 | 2000 | 6000 |
| 32 | 2000 | 6000 |
| 40 | 2000 | 6000 |
| 50 | 2000 | 6000 |
| 60 | 1800 | 3400 |
This robust material finds its purpose in the most demanding applications. You’ll often see ARCELOR 400 used in heavy machinery components, robust storage containers, and the construction of vital industrial equipment where failure is not an option. Its superior characteristics also make it ideal for structural frames, lifting gears, and various high-stress parts across construction and engineering. Choosing this material means investing in the backbone of a project that simply must not compromise on strength or durability.
Sayed Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Safat, Kuwait.
