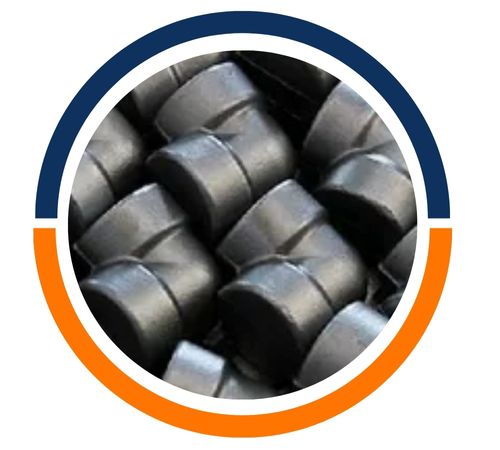

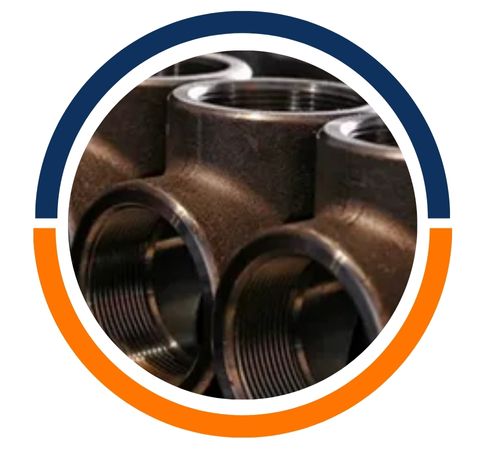

Sayed Steel, a trusted name in Safat, Kuwait, stands as your reliable partner for industrial strength and dependability. We are proud to supply high-quality Carbon Steel A105 Forged Fittings, components engineered for demanding environments. Our commitment is to deliver solutions that ensure the integrity and longevity of your critical piping systems. When you choose Sayed Steel, you’re not just purchasing fittings; you’re investing in a foundation of quality and expertise that supports Kuwait’s growing industrial and construction sectors with unwavering performance.
The composition of Carbon Steel A105 is a careful balance of elements like carbon, manganese, and silicon, giving it a robust foundation. This specific chemistry translates directly into excellent mechanical properties, including high tensile strength and good ductility. These fittings are designed to handle significant pressure and stress, making them exceptionally tough and reliable. This inherent strength ensures they can withstand the rigors of heavy-duty service without compromising their structural integrity, providing a dependable link in any pipeline.
Standard : ASTM A105 / ASME SA 105
Dimensions : ASME/ANSI 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size : 1/8″ NB to 4″ NB

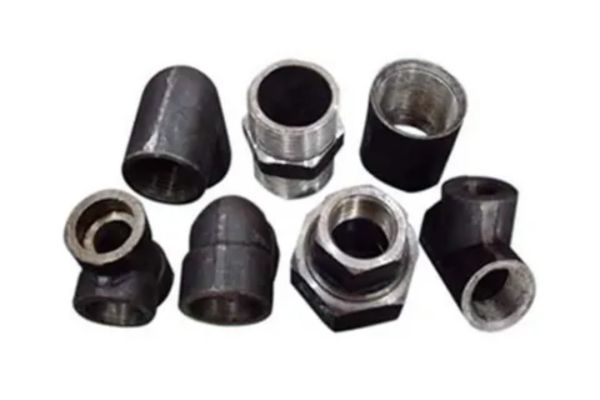

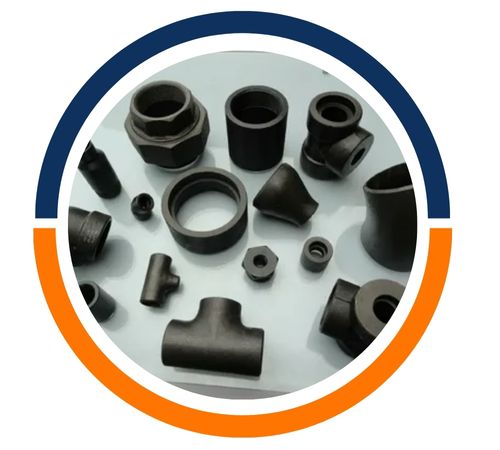

Type : Socketweld Fittings, Screwed-Threaded Fittings (NPT or PT Type)

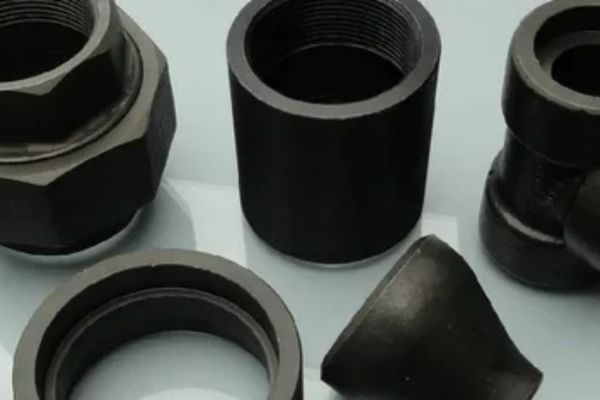

Rating Pressure : Threaded End – 2000 /3000/ 6000 LBS. Socket-weld End – 3000 / 6000/ 9000 LBS.
| Grade | C | Si | Mn | P | S | Mo | Ni | Cr | Cu | V |
| A105 | 0.35 | 0.10–0.35 | 0.60–1.05 | 0.035 | 0.040 | 0.12 | 0.40 | 0.30 | 0.40 | 0.08 |
| Grade | Yield Strength, Min (MPa) | Tensile Strength, Min (MPa) | Elongation, min, % |
| A105 | 250 | 485 | 30 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

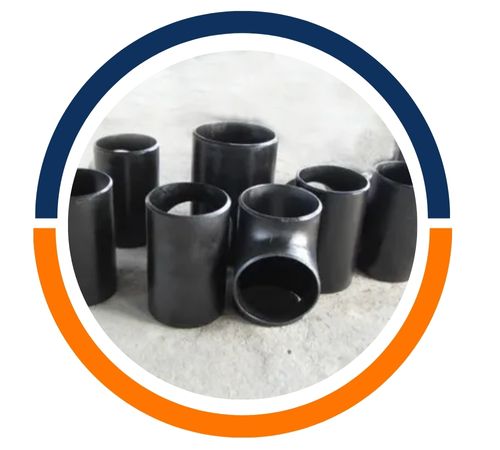

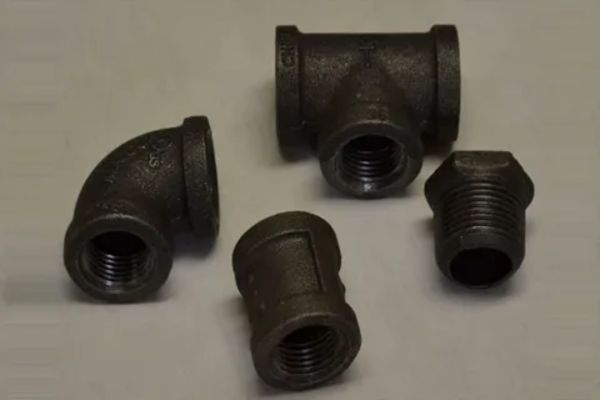

| ASME B16.11 | Factory-Made Wrought Socketweld Fittings | CS A105 Forged Screwed Elbows, Street Elbow, A105 Carbon Steel Screwed Unequal Tee, Steel Straight Tee, Carbon Steel A105 Reducing Coupling, A105 Carbon Steel Hex Plug, Forged Straight Tees, Socket Weld Pipe Cap, Forged Pipe Cap, Equal Crossess, CS A105 Threaded Bushing, A105 Carbon Steel Screwed Caps, Swedge Nipples |
| MSS-SP-79 | standard Practice covers ratings, tolerances, finish, dimensions, marking and material requirements for socket-welding | Carbon Steel A105 Barrel Nipples, CS A105 Forged Threaded Boss, A105 Carbon Steel Forged Hex Head Bull Plugs |

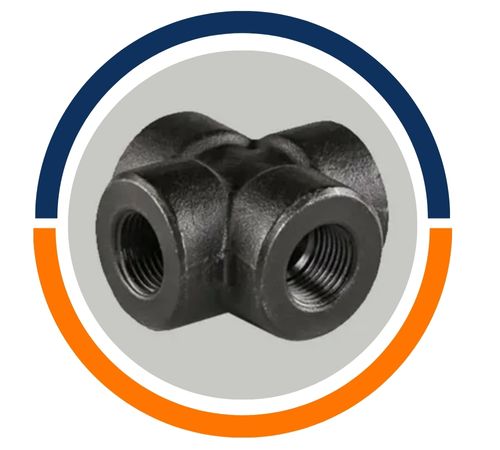

| MSS-SP-83 | Forged and Fabricated Socket-Welding Fittings for Low Pressure, Corrosion Resistant Applications | Carbon Steel A105 High Quality Socket weld 90° Elbow, Straight and Reducing-on-the-Tees, Forged 45° Short Radius Elbow, CS A105 caps, 3000LB Socket Weld Cross |

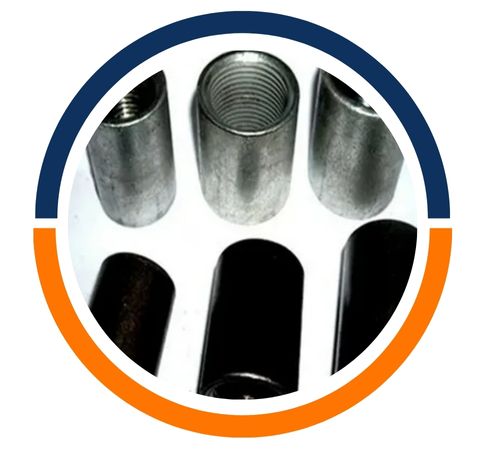

| MSS-SP-95 | Integrally Reinforced Forged Fittings – Socket Welding, Threaded, and Buttwelding Ends | CS A105 Socket weld Long Radius 90 Degree Elbows, Reducing Nipple, Socketweld Bushing, Threaded Plug, End Pipe caps, Carbon Steel A105 Coupling |
Carbon Steel A105 Forged Fittings are the workhorses of industrial piping, commonly found in refineries, power generation plants, and petrochemical facilities. Their primary role is in high-pressure and high-temperature service for systems carrying oil, gas, and water. You’ll also find them essential in utility lines and for connecting to valves and other equipment. Their forged construction makes them ideal for critical applications where failure is not an option, ensuring safe and efficient operation in some of the most challenging environments.
Sayed Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Safat, Kuwait.
