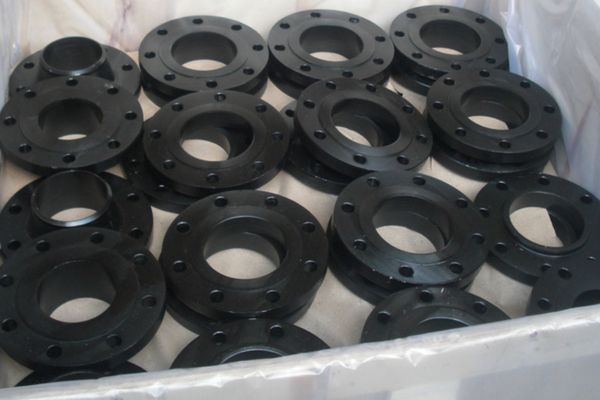

Nestled in the heart of Kuwait’s industrial hub, Safat, Sayed Steel has built a solid reputation as a trusted partner for critical infrastructure. We take pride in being your reliable source for high-performance components like our Carbon Steel A694 Flanges. Designed to meet the most demanding conditions, these flanges are the backbone of secure and efficient connections in systems where strength and reliability are absolutely paramount. When you choose Sayed Steel, you’re selecting quality and dependability for your most essential projects.
Specifically engineered for high-pressure applications, these flanges are made from carbon steel that contains precise amounts of elements like manganese for enhanced strength. They are heat-treated to achieve excellent mechanical properties, including a high yield strength that prevents deforming under immense pressure. This specific composition ensures they deliver superior toughness and impact resistance, even in challenging environments, making them a robust and reliable choice for critical service.
| Specifications | ASTM A694 / ASME SA694 |
| Dimensions | ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc. |
| Standard | ANSI, ASME, BS, DIN, EN etc. |
| Grades | F42, F46, F52, F60, F65, F70, A36, A516 Gr. 70,60 |
| Size | 1/2″ to 48″ |
| Class / Pressure | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |

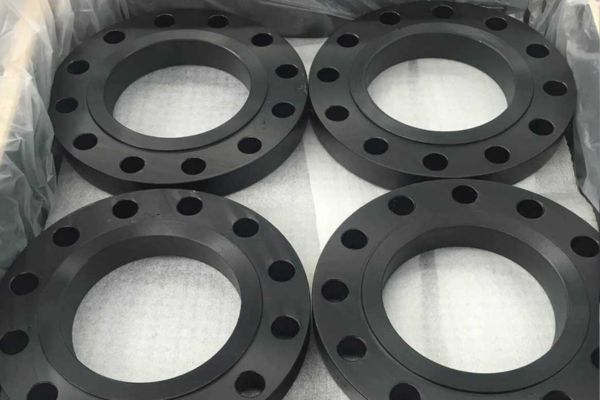

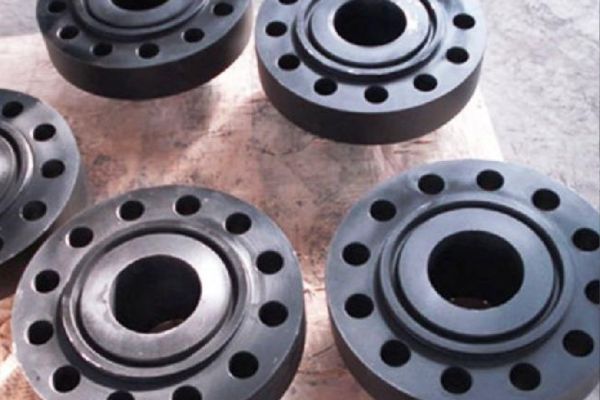

| Flange Face Type | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
| Element | F42 Content, % | F52 Content, % | F60 Content, % | F65 Content, % | F70 Content, % |
| Carbon (C) | 0.13~0.20 | 0.16~0.22 | 0.17~0.23 | 0.17~0.23 | 0.06~0.10 |
| Silicon (Si) | 0.20~0.40 | 0.15~0.40 | 0.15~0.40 | 0.15~0.40 | 0.20~0.40 |
| Manganese (Mn) | 1.20~1.60 | 1.10~1.40 | 1.20~1.50 | 1.30~1.60 | 1.10~1.40 |
| Phosphorous (P) | ≤ 0.030 | ≤ 0.025 | ≤ 0.020 | ≤ 0.025 | ≤ 0.020 |
| Sulfur (S) | ≤ 0.020 | ≤ 0.012 | ≤ 0.012 | ≤ 0.015 | ≤ 0.010 |
| Molybdenum (Mo) | 0.20~0.35 | 0.45~0.60 | 0.45~0.65 | 1.20~1.70 | |
| Nickel (Ni) | ≤ 0.30 | ≤ 0.50 | 0.40~1.00 | ≤ 0.30 | 0.20~0.40 |
| Chromium (Cr) | ≤ 0.30 | ≤ 0.30 | ≤ 0.25 | ≤ 0.30 | ≤ 0.30 |
| Copper (Cu) | ≤ 0.25 | ≤ 0.25 | ≤ 0.25 | ≤ 0.25 | ≤ 0.25 |
| Vanadium (V) | ≤ 0.050 | 0.02~0.06 | |||
| Niobium (Nb) | 0.025~0.050 | ||||
| Pcm | ≤ 0.25 | ||||
| Carbon Equivalent | ≤ 0.48 | ≤ 0.48 | ≤ 0.48 | ≤ 0.43 | ≤ 0.48 |
| ASTM A694 Grade | Yield Strength min. | Tensile Strength min. | Elongation min. | ||
| MPa | ksi | MPa | ksi | % | |
| A694 F42 FLANGES | 290 | 42 | 415 | 65 | 20 |
| A694 F46 FLANGES | 315 | 46 | 415 | 60 | 20 |
| A694 F48 FLANGES | 330 | 48 | 425 | 62 | 20 |
| A694 F50 FLANGES | 345 | 50 | 440 | 64 | 20 |
| A694 F52 FLANGES | 360 | 52 | 455 | 66 | 20 |
| A694 F56 FLANGES | 385 | 56 | 470 | 68 | 20 |
| A694 F60 FLANGES | 415 | 60 | 515 | 75 | 20 |
| A694 F65 FLANGES | 450 | 65 | 530 | 77 | 20 |
| A694 F70 FLANGES | 485 | 70 | 565 | 82 | 18 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Sayed Steel is one of the most prominent manufacturers and suppliers of superior quality Carbon Steel A694 Flanges in Safat, Kuwait. As experts in steel solutions, we supply a complete spectrum of products like Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel. Our product range comprises Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. Known for our reliable delivery and first-rate customer service, we are committed to supplying high-quality steel materials that guarantee durability and excellent performance in numerous industrial applications.Â

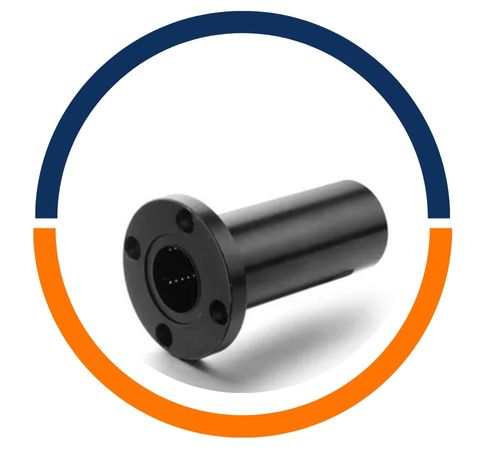

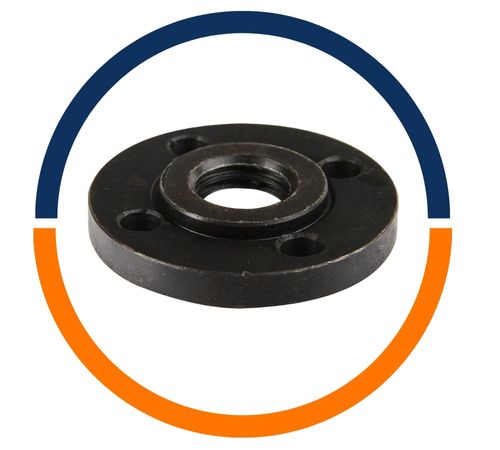

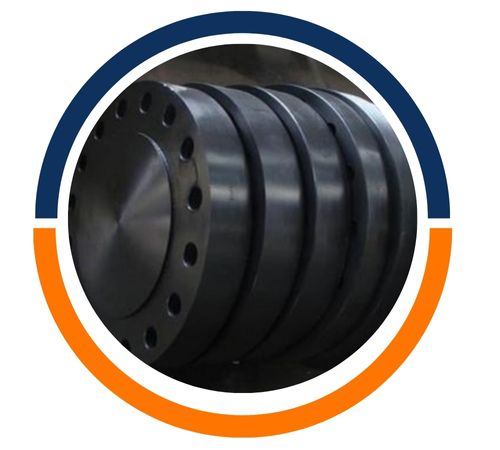

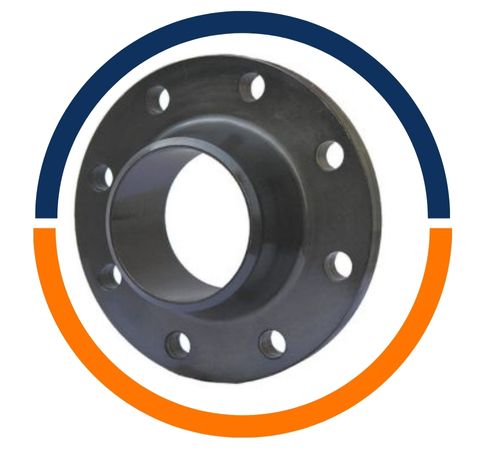

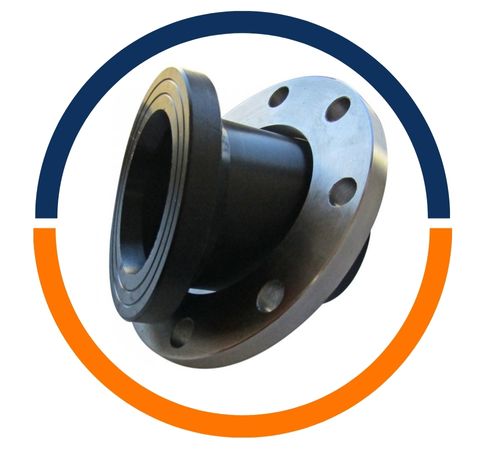

| ASME/ANSI B 16.5 | Welding Neck, Slip on, Blind, High Hub Blind, Socket Weld, Lap Joint, Threaded, Ring Type Joint Flanges |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| ASME/ANSI B 16.47 | Welding Neck, Blind [Series A & B] Flanges |
| PRESSURE CLASS | 75, 150, 300, 400, 600, 900 |
| ASME/ANSI B 16.36 | Welding Neck, Slip on, Threaded Flanges |
| PRESSURE CLASS | 300, 400, 600, 900, 1500, 2500 |
| BS 4504 SEC 3.1 | Welding Neck, Hubbed Slip on, Hubbed Threaded, Lapped Pipe End, Plate, Loose Plate, Loose Plate With Weld Neck, Blank Flange |
| PRESSURE CLASS | PN 2.5 TO PN 40 |
| BS 4504[PART 1] | Welding Neck, Hubbed Slip-On Hubbed Threaded, Plate, Loose Plate With Weld On Plate Collar, Blank Flange |
| PRESSURE CLASS | PN 2.5 TO PN 400 |
| BS 1560 BOSS | Welding Neck, Socket Welding, Slip-On, Blind, Screwed Boss, Lapped Flange |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| BS10 | Welding Neck, Plate Slip-On, Screwed Boss, Slip-On Boss, Blind Flange |
| TABLE | D, E, F, H |
| DIN Flange | DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673 |
| PRESSURE CLASS | PN 6 TO PN 100 |
| Standard | Class | Diameter | Bolt Circle Diameter | Number of Bolts | Bolt Size | Diameter of Bolt Hole |
|---|---|---|---|---|---|---|
| AS4087 | PN14 | 95 | 67 | 4 | M12 | 14 |
| AS 2129 Flange | Table C | 95 | 67 | 4 | 13 | 14 |
| Table D | 95 | 67 | 4 | 13 | 14 | |
| Table E | 95 | 67 | 4 | 13 | 14 | |
| Table F | 95 | 67 | 4 | 13 | 14 | |
| Table H | 114 | 83 | 4 | 16 | 17 | |
| Table J | 114 | 83 | 4 | 16 | 17 | |
| ANSI B16.5 | ANSI 150 | 89 | 60 | 4 | 13 | 16 |
| ANSI 300 | 95 | 67 | 4 | 13 | 16 | |
| ANSI 600 | 95 | 67 | 4 | 13 | 16 | |
| ANSI 900 | 121 | 83 | 4 | 19 | 22 | |
| ANSI 1500 | 121 | 83 | 4 | 19 | 22 | |
| ISO 7005 (DIN) Flange | PN6 | 80 | 55 | 4 | M10 | 11 |
| PN10 | 95 | 65 | 4 | M12 | 14 | |
| PN16 | 95 | 65 | 4 | M12 | 14 | |
| PN20 | 90 | 60.5 | 4 | M14 | 16 | |
| PN25 | 95 | 65 | 4 | M12 | 14 | |
| PN40 | 95 | 65 | 4 | M12 | 14 |
You’ll most commonly find our A694 flanges hard at work in the oil and gas industries, particularly within pipelines and wellhead installations where containing high pressures is a daily necessity. They are also perfectly suited for water pipelines, chemical processing plants, and any industrial setting that requires durable, high-strength piping connections. Essentially, wherever a leak-proof and robust seal is vital for safety and efficiency, these flanges provide the dependable performance that engineers and project managers can trust completely.
Sayed Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Safat, Kuwait.
