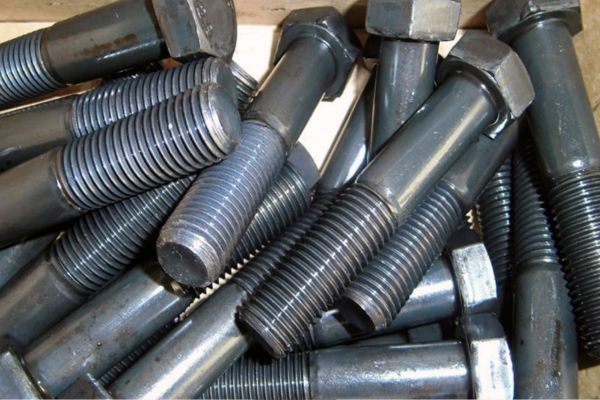

Sayed Steel, a trusted name in Safat, Kuwait, brings you reliable carbon steel bolts, the cornerstone of countless projects. We understand that the integrity of your structures depends on the quality of even the smallest components. That’s why we provide durable, high-strength fastening solutions you can count on, backed by our commitment to quality and customer service. When your project demands resilience, our carbon steel bolts offer the fundamental strength needed for lasting security and stability, piece by piece.
These bolts are forged from carbon steel, primarily composed of iron and carbon, with small additions of other elements to enhance specific characteristics. This composition gives them a solid balance of strength, hardness, and wear resistance. The mechanical properties can be adjusted through heat treatment, but they generally offer excellent tensile strength and perform reliably under high stress, making them a robust and dependable choice for general-purpose and heavy-duty fastening needs.
Specification :Â ASTM F568 / ASME SF568
Dimension :Â DIN, ISO, ASTM, JIS, BS, GB, IS and all International Standards
Size Range :Â M3 – M56 | 3/6″ to 2″ | Custom Sizes
Length :Â 3 mm to 200 mm

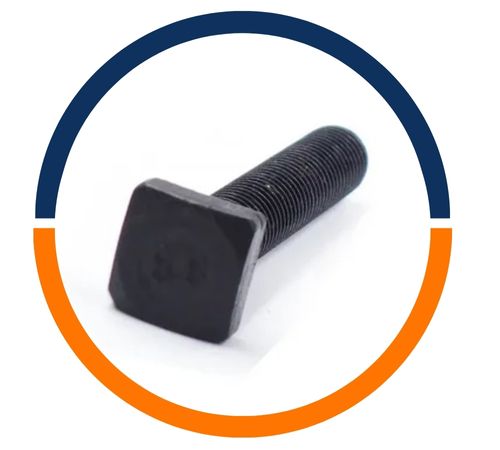

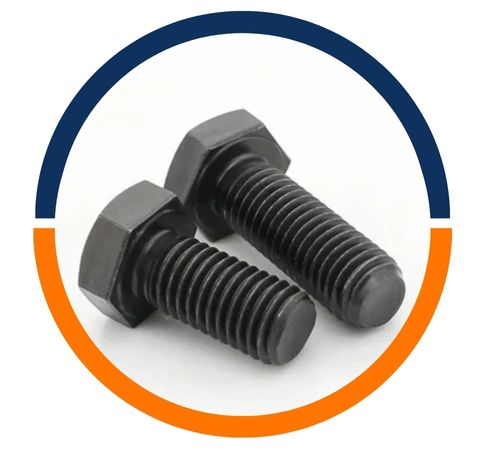

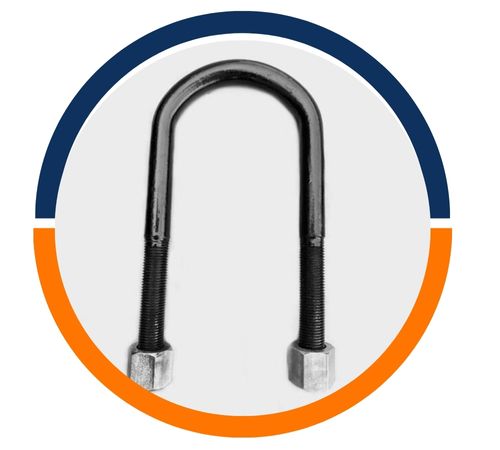

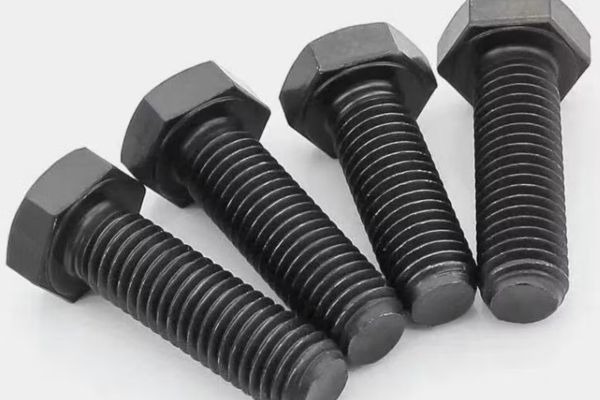

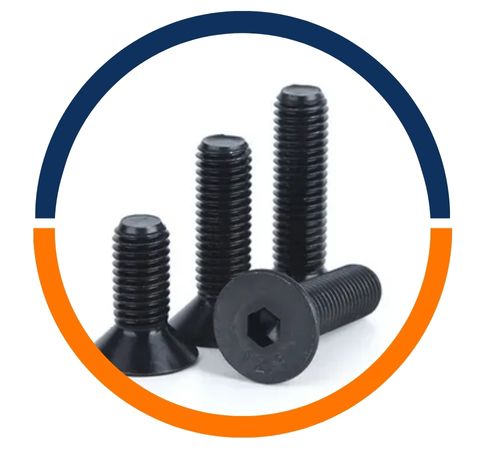

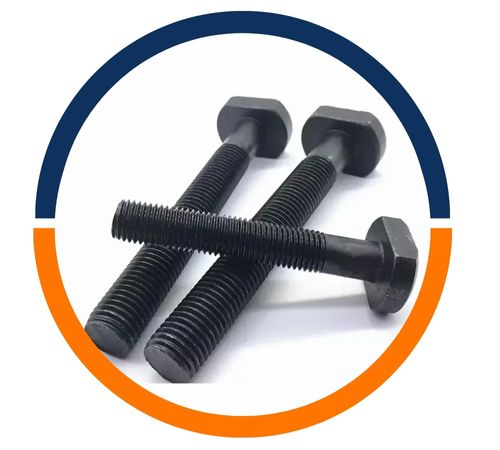

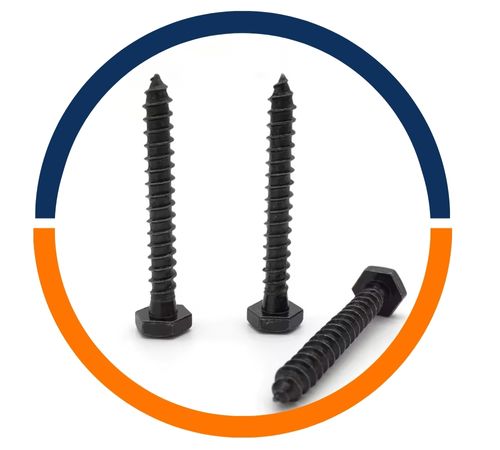

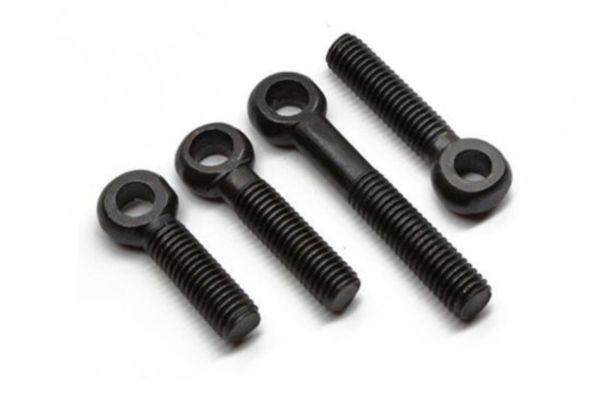

Type : Hex Head Bolts, Square Bolts, U bolts, Eye bolts, T bolt, Hex Bolt, Lag Bolts, Counter sunk Bolts
| Grade | C | P | S | B |
| Carbon Steel 10.9 | 0.20-0.55 | 0.025 | 0.025 | 0.003 |
| Carbon Steel 12.9 | 0.28-0.5 | 0.025 | 0.025 | 0.003 |
| Element | Nominal thread diameter size range [mm] | Proof strength [MPa] | Yield strength (min) [MPa] | Tensile strength (min) [MPa] | Hardness [Rockwell] |
| Carbon Steel 10.9 | 5–100 | 830 | 940 | 1040 | C32–39 |
| Carbon Steel 12.9 | 1.6–100 | 970 | 1100 | 1220 | C39–44 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Jaxon Steel is a trustworthy manufacturer and supplier of quality Carbon Steel Bolts in Safat, Kuwait. We specialize in top-grade steel products like Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel, with the main focus being on Carbon Steel Sheets and Plates. Our vast inventory also includes Pipes, Tubes, Flanges, Forged Fittings, and Bars. Committed to fast delivery and excellent customer service, we use only the finest raw materials to deliver excellent strength, durability, and performance for high-demand industrial uses. Contact us today for all your Carbon Steel Bolt needs!
| Heavy Hex Bolt Diameter | Â D | Â F | Â C | Â H | |||||
|  Body Diameter  |  Width Across Flats |  Width Across Corners |  Height | ||||||
|  Max |  Basic |  Max    |  Min     |  Max |  Min |  Basic |  Max    |  Min    | |
| 1/2 | 0.515 | 7/8 | 0.875 | 0.850 | 1.010 | 0.969 | 11/32 | 0.364 | 0.302 |
| 5/8 | 0.642 | 1-1/16 | 1.062 | 1.031 | 1.227 | 1.175 | 27/64 | 0.444 | 0.378 |
| 3/4 | 0.768 | 1-1/4 | 1.250 | 1.212 | 1.443 | 1.383 | 1/2 | 0.524 | 0.455 |
| 7/8 | 0.895 | 1-7/16 | 1.438 | 1.394 | 1.660 | 1.589 | 37/64 | 0.604 | 0.531 |
| 1 | 1.022 | 1-5/8 | 1.625 | 1.575 | 1.876 | 1.796 | 43/64 | 0.700 | 0.591 |
| 1-1/8 | 1.149 | 1-13/16 | 1.812 | 1.756 | 2.093 | 2.002 | 3/4 | 0.780 | 0.658 |
| 1-1/4 | 1.277 | 2 | 2.00 | 1.938 | 2.309 | 2.209 | 27/32 | 0.876 | 0.749 |
| 1-3/8 | 1.404 | 2-3/16 | 2.188 | 2.119 | 2.526 | 2.416 | 29/32 | 0.940 | 0.810 |
| 1-1/2 | 1.531 | 2-3/8 | 2.375 | 2.300 | 2.742 | 2.622 | 1 | 1.036 | 0.902 |
| 1-3/4 | 1.785 | 2-3/4 | 2.750 | 2.662 | 3.175 | 3.035 | 1-5/32 | 1.196 | 1.054 |
| 2 | 2.039 | 3-1/8 | 3.125 | 3.025 | 3.608 | 3.449 | 1-11/32 | 1.388 | 1.175 |
| 2-1/4 | 2.305 | 3-1/2 | 3.500 | 3.388 | 4.041 | 3.862 | 1-1/2 | 1.548 | 1.327 |
| 2-1/2 | 2.559 | 3-7/8 | 3.875 | 3.750 | 4.474 | 4.275 | 1-21/32 | 1.708 | 1.479 |
| Nominal or Basic Product Diameter | E | F | G | H | J | LT (Thread Length) | Y | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Body Diameter | Width Across Flats | Width Across Corners | Head Height | Wrenching Height | For Bolt Lengths | For Bolt Lengths | Transition Thread Length | ||||||||
| 1/4 | 0.25 | 0.25 | 0.245 | 7/16 | 0.438 | 0.428 | 0.505 | 0.488 | 5/32 | 0.163 | 0.150 | 0.106 | 0.750 | 1.000 | 0.250 |
| 5/16 | 0.3125 | 0.3125 | 0.3065 | 1/2 | 0.500 | 0.489 | 0.577 | 0.557 | 13/64 | 0.211 | 0.195 | 0.140 | 0.875 | 1.125 | 0.278 |
| 3/8 | 0.375 | 0.375 | 0.369 | 9/16 | 0.562 | 0.551 | 0.650 | 0.628 | 15/64 | 0.243 | 0.226 | 0.160 | 1.000 | 1.250 | 0.312 |
| 7/16 | 0.4375 | 0.4375 | 0.4305 | 5/8 | 0.625 | 0.612 | 0.722 | 0.698 | 9/32 | 0.291 | 0.272 | 0.195 | 1.125 | 1.375 | 0.357 |
| 1/2 | 0.5 | 0.5 | 0.493 | 3/4 | 0.750 | 0.736 | 0.866 | 0.840 | 5/16 | 0.323 | 0.302 | 0.215 | 1.250 | 1.500 | 0.385 |
| 9/16 | 0.5625 | 0.5625 | 0.5545 | 13/16 | 0.812 | 0.798 | 0.938 | 0.910 | 23/64 | 0.371 | 0.348 | 0.250 | 1.375 | 1.625 | 0.417 |
| 5/8 | 0.625 | 0.625 | 0.617 | 15/16 | 0.938 | 0.922 | 1.083 | 1.051 | 25/64 | 0.403 | 0.378 | 0.269 | 1.500 | 1.750 | 0.455 |
| 3/4 | 0.75 | 0.75 | 0.741 | 1-1/8 | 1.125 | 1.100 | 1.299 | 1.254 | 15/32 | 0.483 | 0.455 | 0.324 | 1.750 | 2.000 | 0.500 |
| 7/8 | 0.875 | 0.875 | 0.866 | 1-5/16 | 1.312 | 1.285 | 1.516 | 1.465 | 35/64 | 0.563 | 0.531 | 0.378 | 2.000 | 2.250 | 0.556 |
| 1 | 1 | 1 | 0.99 | 1-1/2 | 1.500 | 1.469 | 1.732 | 1.675 | 39/64 | 0.627 | 0.591 | 0.416 | 2.250 | 2.500 | 0.625 |
| 1-1/8 | 1.125 | 1.125 | 1.114 | 1-11/16 | 1.688 | 1.631 | 1.949 | 1.859 | 11/16 | 0.718 | 0.658 | 0.461 | 2.500 | 2.750 | 0.714 |
| 1-1/4 | 1.25 | 1.25 | 1.239 | 1-7/8 | 1.875 | 1.812 | 2.165 | 2.066 | 25/32 | 0.813 | 0.749 | 0.530 | 2.750 | 3.000 | 0.714 |
| 1-1/2 | 1.5 | 1.5 | 1.488 | 2-1/4 | 2.250 | 2.175 | 2.598 | 2.480 | 15/16 | 0.974 | 0.902 | 0.640 | 3.250 | 3.500 | 0.833 |
You’ll find these bolts hard at work in countless settings, from the steel frameworks of new buildings and industrial machinery to bridges and automotive assembly. They are the unsung heroes in construction and manufacturing, providing the essential connections that hold everything together. Essentially, anywhere a strong, durable, and cost-effective fastening solution is needed to bear significant weight and stress, the carbon steel bolt is the go-to choice for ensuring long-term structural integrity.
Sayed Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Safat, Kuwait.
