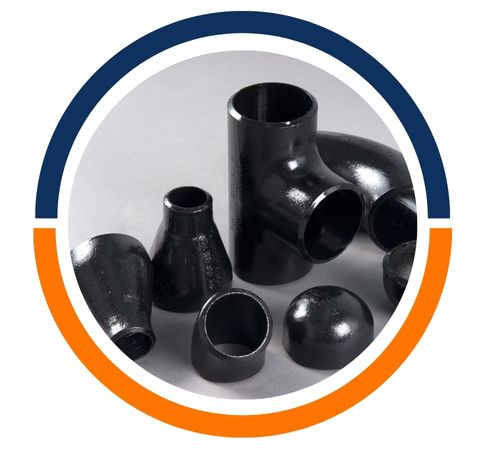

Nestled in the industrial heart of Safat, Kuwait, Sayed Steel has built a reputation as a trusted supplier for critical projects. We take great pride in furnishing industry with top-tier materials, and our Carbon Steel WPHY 52 Pipe Fittings are a prime example. Engineered for demanding environments, these fittings are the cornerstone of robust piping systems, offering a reliable solution where strength and integrity simply cannot be compromised.
The chemical makeup of these pipe fittings is carefully balanced to deliver outstanding mechanical properties. They are designed to achieve a minimum yield strength of 52,000 psi, which provides exceptional structural integrity under high pressure. This toughness is complemented by good ductility, allowing for some flexibility and resistance to impact, ensuring a long-lasting performance in challenging conditions.
Specifications : A- 860 or MSS SP75
Standard : ASTM A860 / ASME SA860
Size : ½”NB to 48″NB in Sch 10s, 40s, 80s, 160s, XXS.
Schedules :Sch.40 to Sch.XXs
Type : Seamless / Welded / Fabricated
| Grade | C | Mn | S | P | Si | Ni | Cr | Mo | Cu | Ti | V | Cb | Al |
| WPHY 52 | 0.20 | 1.00-1.45 | 0.03 | 0.01 | 0.15-0.40 | 0.50 | 0.30 | 0.25 | 0.35 | 0.05 | 0.10 | 0.06 |
| Element | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| WPHY 52 | 515-690 | 66 | 28 % |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Nominal Pipe Size | Outside Diameter | Caps | Straight Tees | Straight Crosses | Stub Ends | |||
| inch | mm | inch | Length (inch) | Center to End (inch) | Center to End (inch) | Lap Diameter (inch) | Long Length (inch) | Short Length (inch) |
| 1/2 | 21.3 | 0.840 | 1 | 1 | – | 1 3/8 | 3 | 2 |
| 3/4 | 26.7 | 1.050 | 1 | 1 1/8 | – | 1 11/16 | 3 | 2 |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 1/2 | 1 1/2 | 2 | 4 | 2 |
| 1 1/4 | 42.2 | 1.660 | 1 1/2 | 1 7/8 | 1 7/8 | 2 1/2 | 4 | 2 |
| 1 1/2 | 48.3 | 1.900 | 1 1/2 | 2 1/4 | 2 1/4 | 2 7/8 | 4 | 2 |
| 2 | 60.3 | 2.375 | 1 1/2 | 2 1/2 | 2 1/2 | 3 5/8 | 6 | 2 1/2 |
| 2 1/2 | 73.0 | 2.875 | 1 1/2 | 3 | 3 | 4 1/8 | 6 | 2 1/2 |
| 3 | 88.9 | 3.500 | 2 | 3 3/8 | 3 3/8 | 5 | 6 | 2 1/2 |
| 3 1/2 | 101.6 | 4.000 | 2 1/2 | 3 3/4 | 3 3/4 | 5 1/2 | 6 | 3 |
| 4 | 114.3 | 4.500 | 2 1/2 | 4 1/8 | 4 1/8 | 6 3/16 | 6 | 3 |
| 5 | 141.3 | 5.563 | 3 | 4 7/8 | 4 7/8 | 7 5/16 | 8 | 3 |
| 6 | 168.3 | 6.625 | 3 1/2 | 5 5/8 | 5 5/8 | 8 1/2 | 8 | 3 1/2 |
| 8 | 219.1 | 8.625 | 4 | 7 | 7 | 10 5/8 | 8 | 4 |
| 10 | 273.1 | 10.750 | 5 | 8 1/2 | 8 1/2 | 12 3/4 | 10 | 5 |
| 12 | 323.9 | 12.750 | 6 | 10 | 10 | 15 | 10 | 6 |
Sayed Steel is a top manufacturer and supplier of high-quality Carbon Steel WPHY 52 Pipe Fittings products in Safat, Kuwait. Specializing in steel solutions, we provide a wide range of products, including Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel. Our offerings include Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates. Known for our reliable delivery and superior customer service, we are committed to offering top-tier steel materials that ensure durability and performance across a wide range of industrial applications. We strive to meet the highest standards, making us a trusted partner for all your steel needs.
You’ll typically find these high-strength fittings hard at work in sectors where safety and reliability are absolutely paramount. They are ideally suited for critical applications within oil and gas transmission pipelines, refinery pipe systems, and industrial plant facilities. Their robust nature makes them a preferred choice for assembling high-pressure and heavy-duty pipelines that form the backbone of essential infrastructure, ensuring secure and efficient operations year after year.
