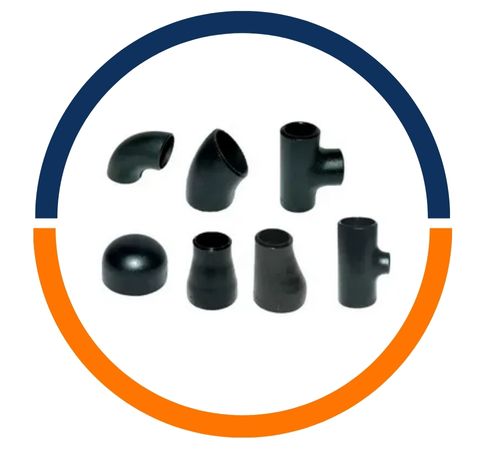

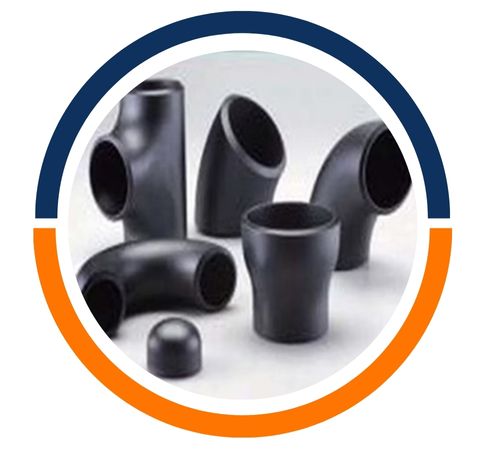

When it comes to demanding industrial applications in Kuwait, Sayed Steel in Safat stands as your reliable partner. We take pride in supplying high-performance Carbon Steel WPHY 80 Pipe Fittings, engineered for environments where exceptional strength is non-negotiable. These fittings are designed to form the backbone of robust piping systems, ensuring integrity and safety in the toughest conditions.
Crafted from a precise blend of carbon, manganese, and other elements, WPHY 80 fittings are heat-treated to achieve superior mechanical properties. They offer a minimum yield strength of 80,000 psi, ensuring remarkable toughness and resistance to impact. This high-strength composition makes them exceptionally durable and reliable for high-pressure systems, providing long-lasting performance under stress.
| Specifications: | ASTM A860 / ASME SA860 |
|---|---|
| Size: | Seamless Butt Weld Fittings : 1/2″ – 10″, Welded Butt Weld Fittings : 1/2″ – 48″ |
| Dimensions: | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1800, BS10 |
| Thickness: | 5s, 10s, 40s, 80s, 10, 20, 40, STD, 80, 80, XS, 100, 120, 140, 180, XXS available with NACE MR 01-75 |
| Bending Radius: | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom ASTM A860 Gr WPHY 80 Pipe Fitting |
| Type: | Seamless / Welded / Fabricated |
| Grade | C | Mn | P | S | Si | Ni | Cr | Mo | Cu | Ti | V | cb | AI | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ASTM WPHY 80 | 0.20 | 1.00-1.45 | 0.03 | 0.01 | 0.15-0.40 | 0.50 | 0.30 | 0.25 | 0.35 | 0.05 | 0.10 | 0.04 | 0.06 | |
| Element | ASTM WPHY 80 | |
|---|---|---|
| Tensile Strength (mpa) | 485 | |
| Yield Strength (mpa) | 580 | |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Nominal Pipe Size | Outside Diameter | Caps | Straight Tees | Straight Crosses | Stub Ends | |||
| inch | mm | inch | Length (inch) | Center to End (inch) | Center to End (inch) | Lap Diameter (inch) | Long Length (inch) | Short Length (inch) |
| 1/2 | 21.3 | 0.840 | 1 | 1 | – | 1 3/8 | 3 | 2 |
| 3/4 | 26.7 | 1.050 | 1 | 1 1/8 | – | 1 11/16 | 3 | 2 |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 1/2 | 1 1/2 | 2 | 4 | 2 |
| 1 1/4 | 42.2 | 1.660 | 1 1/2 | 1 7/8 | 1 7/8 | 2 1/2 | 4 | 2 |
| 1 1/2 | 48.3 | 1.900 | 1 1/2 | 2 1/4 | 2 1/4 | 2 7/8 | 4 | 2 |
| 2 | 60.3 | 2.375 | 1 1/2 | 2 1/2 | 2 1/2 | 3 5/8 | 6 | 2 1/2 |
| 2 1/2 | 73.0 | 2.875 | 1 1/2 | 3 | 3 | 4 1/8 | 6 | 2 1/2 |
| 3 | 88.9 | 3.500 | 2 | 3 3/8 | 3 3/8 | 5 | 6 | 2 1/2 |
| 3 1/2 | 101.6 | 4.000 | 2 1/2 | 3 3/4 | 3 3/4 | 5 1/2 | 6 | 3 |
| 4 | 114.3 | 4.500 | 2 1/2 | 4 1/8 | 4 1/8 | 6 3/16 | 6 | 3 |
| 5 | 141.3 | 5.563 | 3 | 4 7/8 | 4 7/8 | 7 5/16 | 8 | 3 |
| 6 | 168.3 | 6.625 | 3 1/2 | 5 5/8 | 5 5/8 | 8 1/2 | 8 | 3 1/2 |
| 8 | 219.1 | 8.625 | 4 | 7 | 7 | 10 5/8 | 8 | 4 |
| 10 | 273.1 | 10.750 | 5 | 8 1/2 | 8 1/2 | 12 3/4 | 10 | 5 |
| 12 | 323.9 | 12.750 | 6 | 10 | 10 | 15 | 10 | 6 |
Sayed Steel is a top manufacturer and supplier of high-quality Carbon Steel WPHY 80 Pipe Fittings products in Safat, Kuwait. Specializing in steel solutions, we provide a wide range of products, including Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel. Our offerings include Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates. Known for our reliable delivery and superior customer service, we are committed to offering top-tier steel materials that ensure durability and performance across a wide range of industrial applications. We strive to meet the highest standards, making us a trusted partner for all your steel needs.
Industries across Kuwait rely on Carbon Steel WPHY 80 Pipe Fittings for critical infrastructure. They are essential in oil and gas fields for high-pressure transmission lines, refinery piping, and processing equipment. Their strength is also vital in petrochemical plants, power generation facilities, and large-scale construction projects, where they safely contain and transport challenging media under extreme conditions.
Sayed Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Safat, Kuwait.
