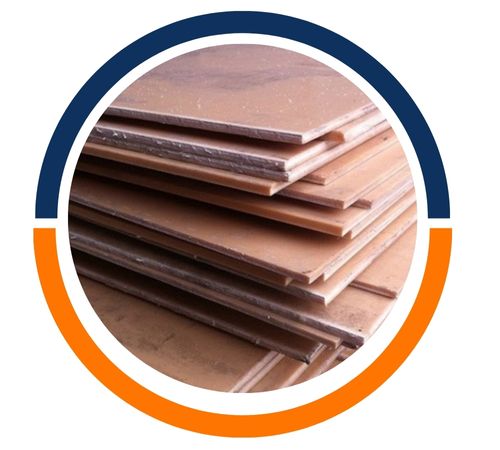

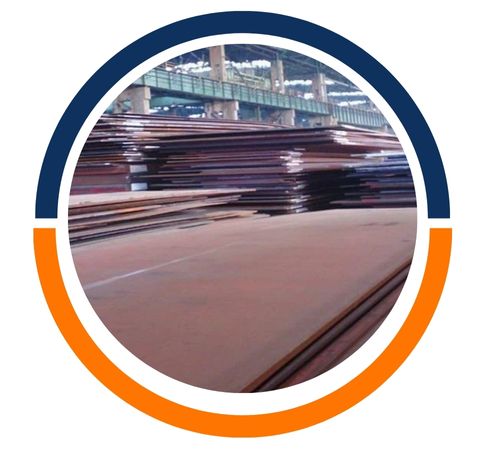

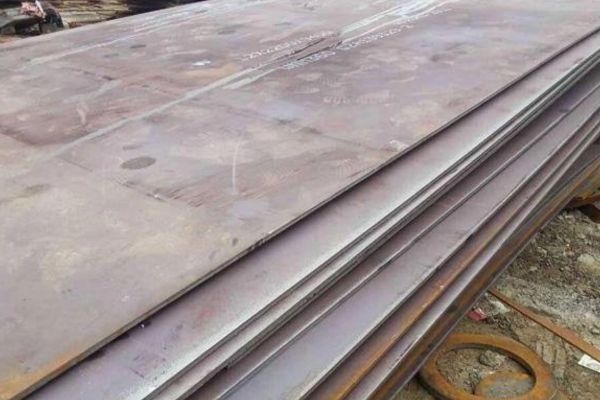

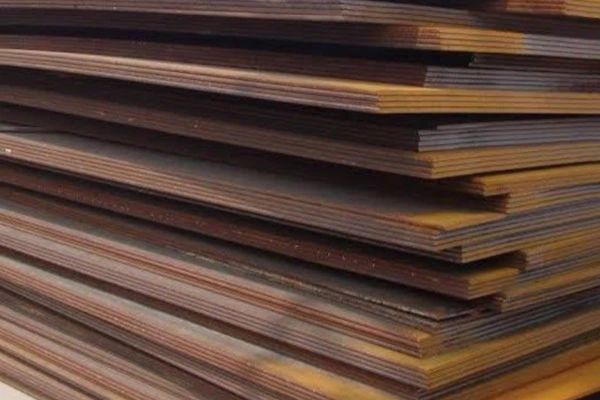

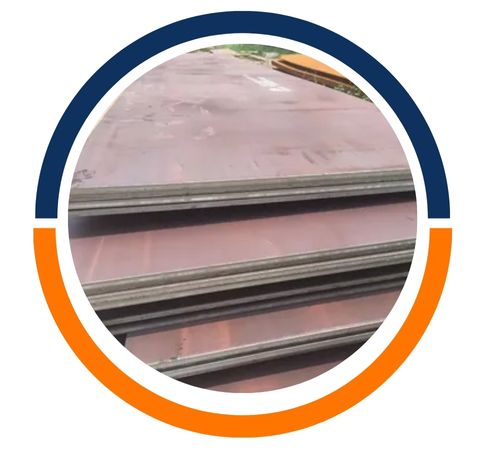

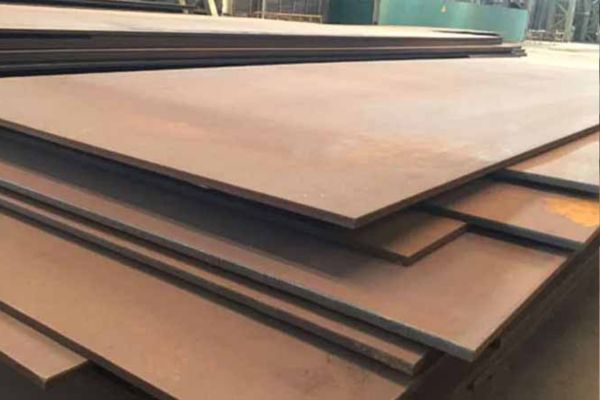

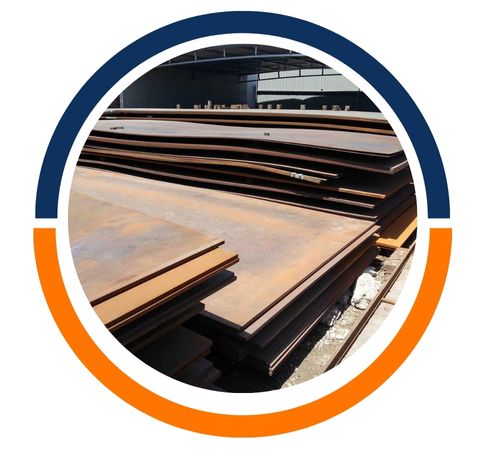

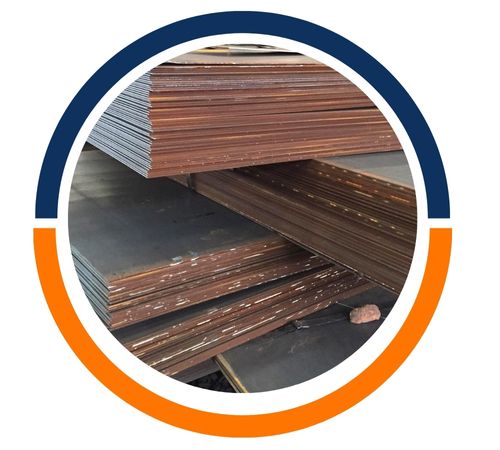

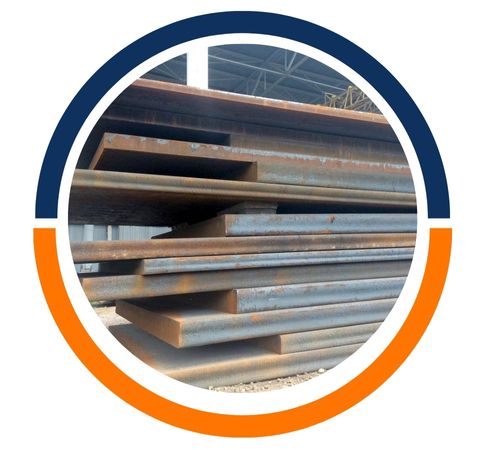

We are delighted to introduce the NICRODUD 500 series of sheets and plates from Sayed Steel, a trusted name in Kuwait’s industrial supply sector. Sourced to meet the most demanding standards, this high-strength, abrasion-resistant steel is engineered for durability in challenging environments. It represents a significant advancement in material technology, offering unparalleled longevity and performance for a variety of industrial and construction applications, ensuring your projects are built to last.
The material’s composition is a carefully balanced alloy, primarily iron, with significant additions of chromium and other elements that create its robust nature. Mechanically, NICRODUR 500 excels with a minimum hardness of 500 HBW, providing exceptional resistance to wear and deformation. This high strength-to-weight ratio means it can withstand immense pressure and abrasive forces, making it a superior choice for situations where ordinary steel would quickly deteriorate.
Item: NICRODUR 500
Thickness : 5mm to 150mm
Length : 6,000mm to 12,000mm
Width : 1,500mm to 2,500mm
Heat Treatment: N, Q+T
Surface Point : EP, PE, HDP, SMP, PVDF
| Plate Thickness [mm] | C max | Si max | Mn max | S max | P max | Cr max | Ni max | Mo max | B max | CEV max | |
| 8 – 25 | 0,28 | 1,0 | 1,5 | 0,002 | 0,012 | 1,0 | 0,5 | 0,5 | 0,005 | 0,61 | |
| (20) – 40 | 0,32 | 1,0 | 1,5 | 0,002 | 0,012 | 1,1 | 0,5 | 0,5 | 0,005 | 0,71 | |
| (40) – 60 | 0,34 | 1,0 | 1,5 | 0,002 | 0,012 | 1,2 | 0,7 | 0,5 | 0,005 | 0,76 | |
| (60) – 80 | 0,40 | 1,0 | 1,5 | 0,002 | 0,012 | 1,5 | 1,0 | 0,5 | 0,005 | 0,81 |
| Yield strength(minimal), Re [MPa] | Tensile strength, Rm [MPa] | Elongation (minimal), A5 [%] | |
| NICRODUR 500 | 1500 | 1800 | 9 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| 1/8″ | 3/8″ | 3/4″ | 1-1/2″ | 3″ |
| 3/16″ | 1/2″ | 1″ | 2″ | 4″ |
| 1/4″ | 5/8″ | 1-1/4″ | 2-1/2″ | Â |
| *1/8″ thick plate is available in one size only 60″x 120″. The 3/6″ thick plate is available only as 48″ x 144″ and 96″ x 144″. | ||||
| Thickness | Width | Length |
| 4 | 2000 | 6000 |
| 5 | 2000 | 6000 |
| 6 | 2000 | 6000 |
| 6 | 2500 | 6000 |
| 8 | 2000 | 6000 |
| 8 | 2500 | 6000 |
| 10 | 2000 | 6000 |
| 12 | 2000 | 6000 |
| 15 | 2000 | 6000 |
| 16 | 2000 | 6000 |
| 20 | 2000 | 6000 |
| 25 | 2000 | 6000 |
| 32 | 2000 | 6000 |
| 40 | 2000 | 6000 |
| 50 | 2000 | 6000 |
| 60 | 1800 | 3400 |
Common uses for NICRODUR 500 include heavy-duty applications such as construction machinery components, mining equipment liners, and hoppers that handle abrasive materials. It is also ideal for manufacturing buckets, crusher parts, and recycling plant equipment. Essentially, wherever constant friction and impact are a daily reality, this material proves its worth by significantly extending the service life of critical equipment, reducing downtime and maintenance costs.
