Nestled in the industrial heart of Safat, Sayed Steel has built its reputation as a trusted manufacturer and supplier, with a particular expertise in S355J2G3 steel sheets and plates. We understand that the foundation of any great project is superior materials, which is why we ensure our products consistently meet the rigorous demands of Kuwait’s dynamic industrial landscape. Our commitment is to provide not just steel, but reliable solutions that form the backbone of your most important undertakings, backed by dependable service you can count on.
The S355J2G3 grade is a versatile carbon structural steel, strengthened with additions of phosphorus and silicon for enhanced durability. It’s known for a minimum yield strength of 355 MPa, offering an excellent balance of strength, good formability, and impact toughness, even in lower temperatures. This specific chemical composition ensures reliable welding characteristics and consistent performance, making it a robust choice for load-bearing components and structures that must endure significant stress and environmental challenges. It is a reliable and predictable material.
| Item | S355J2G3 – Offshore & Structural Steel Plates |
|---|---|

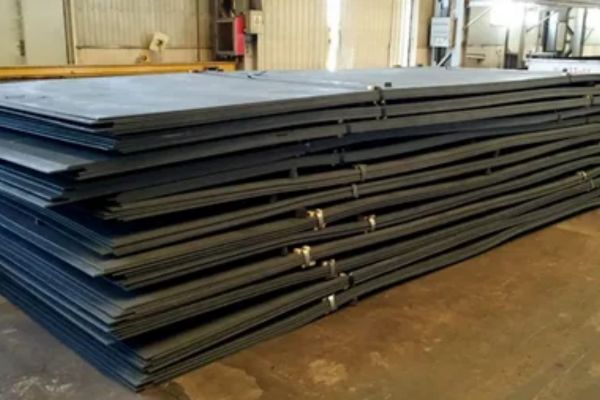

| Technique | hot rolled |
| Thickness | 5mm-150mm |
| Width | 1000mm-4500mm |
| Length | 3000mm-18000mm or as custom’s request |
| Standard | EN 10025-2:2004 |
| Material | S355J2G3 Steel Plates, En 10025-2 Steel Plate |
| Material | Si | Mn | Ni | C | Al | P | Cu | Cr | S | CEQ |
| DIN 1.0570 | 0.55 max. | 1.60 max. | 0.30 max. | 0.20 max. | 0.020 max. | 0.035 max. | 0.30 max. | 0.30 max. | 0.035 max. | 0.45 max. |
| Grade | Tensile(MPa) | (Mpa)Â Min Yield Strength | Elongation(%) | Thickness (mm) | Min Impact Energy | |
| DIN 1.0570 | ||||||
| 450-600 Mpa | 285 -295Mpa | 18% | 101 -200 | -20 | 27J | |
| 450-630 Mpa | 315 -355 Mpa | 18-20% | 8 -100 | -20 | 27J | |
| 450-600 Mpa | 275 Mpa | 17% | 201 -400 | -20 | ||
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| 4.7 – 51.0 | Thickness (milimeter) |
|---|---|
| 0.47 (0.70) | Max CET(CEV) |
| 0.40 (0.59) | Typ CET(CEV) |
| Plate Thickness (mm) | Weight (kg/m2) |
| 1.06 mm | 12.06 |
| 2.00 mm | 15.07 |
| 2.05 mm | 19.06 |
| 3 mm | 23.06 |
| 3.02 mm | 25.01 |
| 4 mm | 31.04 |
| 5 mm | 39.03 |
| 6 mm | 47.01 |
| 8 mm | 62.08 |
| 10 mm | 78.05 |
| 12.05 mm | 98.01 |
| 15 mm | 118 |
| 20 mm | 157 |
| 22.05 mm | 177 |
| 25 mm | 196 |
| 30 mm | 236 |
| 32 mm | 251 |
| 35 mm | 275 |
| 40 mm | 314 |
| 45 mm | 353 |
| 50 mm | 393 |
| 55 mm | 432 |
| 60 mm | 471 |
| 65 mm | 510 |
| 70 mm | 550 |
| 75 mm | 589 |
| 80 mm | 628 |
| 90 mm | 707 |
| 100 mm | 785 |
| 110 mm | 864 |
| 120 mm | 942 |
| 130 mm | 1051 |
| 150 mm | 1178 |
| 160 mm | 1256 |
| 180 mm | 1413 |
| 200 mm | 1570 |
| 250 mm | 1963 |
| length x Width | Thickness | Mass per Sq m | Â | Length x Width | Thickness | Mass per Sq m |
|---|---|---|---|---|---|---|
| milimeter | milimeter | Kg/m2 | milimeter | milimeter | Kg/m2 | |
| 2000 x 1000 | 3 | 23.055 | 2000 x 1000 | 30.000 | 235.050 | |
| 2500 x 1250 | 3 | 23.055 | 2500 x 1250 | 30.000 | 235.050 | |
| 3000 x 1500 | 3 | 23.055 | 3000 x 1500 | 30.000 | 235.050 | |
| 3660 x 1830 | 3 | 23.055 | 4000 x 2000 | 30.000 | 235.050 | |
| 4000 x 2000 | 3 | 23.055 | 5000 x 1250 | 30.000 | 235.050 | |
| 2000 x 1000 | 4 | 31.040 | 5000 x 2500 | 30.000 | 235.050 | |
| 2500 x 1250 | 4 | 31.040 | 6000 x 2500 | 30.000 | 235.050 | |
| 3000 x 1500 | 4 | 31.040 | 10000 x 2500 | 30.000 | 235.050 | |
| 3660 x 1830 | 4 | 31.040 | 2000 x 1000 | 32.000 | 251.020 | |
| 2000 x 1000 | 5 | 39.025 | 2500 x 1250 | 32.000 | 251.020 | |
| 2500 x 1250 | 5 | 39.025 | 3000 x 1500 | 32.000 | 251.020 | |
| 3000 x 1500 | 5 | 39.025 | 4000 x 2000 | 32.000 | 251.020 | |
| 3660 x 1830 | 5 | 39.025 | 5000 x 2500 | 32.000 | 251.020 | |
| 4000 x 1750 | 5 | 39.025 | 2500 x 1250 | 35.000 | 274.075 | |
| 4000 x 1830 | 5 | 39.025 | 3000 x 1500 | 35.000 | 274.075 | |
| 4000 x 2000 | 5 | 39.025 | 4000 x 2000 | 35.000 | 274.075 | |
| 6000 x 2000 | 5 | 39.025 | 2000 x 1000 | 40.000 | 314.000 | |
| 2500 x 1250 | 6 | 47.010 | 2500 x 1250 | 40.000 | 314.000 | |
| 3000 x 1500 | 6 | 47.010 | 3000 x 1500 | 40.000 | 314.000 | |
| 3000 x 1525 | 6 | 47.010 | 4000 x 1750 | 40.000 | 314.000 | |
| 3660 x 1830 | 6 | 47.010 | 4000 x 2000 | 40.000 | 314.000 | |
| 4000 x 1750 | 6 | 47.010 | 5000 x 2500 | 40.000 | 314.000 | |
| 4000 x 1830 | 6 | 47.010 | 6000 x 2000 | 40.000 | 314.000 | |
| 4000 x 2000 | 6 | 47.010 | 7500 x 2500 | 40.000 | 314.000 | |
| 6000 x 1500 | 6 | 47.010 | 2000 x 1000 | 45.000 | 353.025 | |
| 6000 x 1830 | 6 | 47.010 | 2500 x 1250 | 45.000 | 353.025 | |
| 6000 x 2000 | 6 | 47.010 | 2500 x 1500 | 45.000 | 353.025 | |
| 6000 x 2500 | 6 | 47.010 | 3000 x 1500 | 45.000 | 353.025 | |
| 8000 x 2000 | 6 | 47.010 | 4000 x 2000 | 45.000 | 353.025 | |
| 8000 x 2500 | 6 | 47.010 | 5000 x 2500 | 45.000 | 353.025 | |
| 2000 x 1000 | 8 | 62.080 | 2000 x 1000 | 50.000 | 392.050 | |
| 2500 x 1250 | 8 | 62.080 | 2500 x 1250 | 50.000 | 392.050 | |
| 3000 x 1500 | 8 | 62.080 | 3000 x 1500 | 50.000 | 392.050 | |
| 3660 x 1830 | 8 | 62.080 | 4000 x 2000 | 50.000 | 392.050 | |
| 4000 x 2000 | 8 | 62.080 | 5000 x 2500 | 50.000 | 392.050 | |
| 5000 x 2500 | 8 | 62.080 | 6000 x 2000 | 50.000 | 392.050 | |
| 6000 x 1500 | 8 | 62.080 | 8000 x 2500 | 50.000 | 392.050 | |
| 6000 x 2000 | 8 | 62.080 | 2000 x 1000 | 60.000 | 471.000 | |
| 8000 x 2000 | 8 | 62.080 | 2500 x 1250 | 60.000 | 471.000 | |
| 2000 x 1000 | 10 | 78.050 | 3000 x 1500 | 60.000 | 471.000 | |
| 2500 x 1250 | 10 | 78.050 | 4000 x 2000 | 60.000 | 471.000 | |
| 3000 x 1500 | 10 | 78.050 | 5000 x 2500 | 60.000 | 471.000 | |
| 4000 x 1750 | 10 | 78.050 | 2000 x 1000 | 65.000 | 510.025 | |
| 5000 x 2500 | 10 | 78.050 | 2500 x 1250 | 65.000 | 510.025 | |
| 6000 x 1500 | 10 | 78.050 | 3000 x 1500 | 65.000 | 510.025 | |
| 6000 x 2000 | 10 | 78.050 | 4000 x 2000 | 65.000 | 510.025 | |
| 6000 x 2500 | 10 | 78.050 | 5000 x 2500 | 65.000 | 510.025 | |
| 10000 x 2000 | 10 | 78.050 | 2000 x 1000 | 70.000 | 549.05 | |
| 10000 x 2500 | 10 | 78.050 | 2500 x 1250 | 70.000 | 549.05 | |
| 2000 x 1000 | 12 | 94.020 | 3000 x 1500 | 70.000 | 549.05 | |
| 4000 x 2000 | 12 | 94.020 | 4000 x 2000 | 70.000 | 549.05 | |
| 6000 x 2000 | 12 | 94.020 | 5000 x 2500 | 70.000 | 549.05 | |
| 6000 x 2500 | 12 | 94.020 | 2000 x 1000 | 75.000 | 588.075 | |
| 2000 x 1000 | 12.05 | 98.013 | 2500 x 1250 | 75.000 | 588.075 | |
| 2500 x 1250 | 12.05 | 98.013 | 3000 x 1500 | 75.000 | 588.075 | |
| 3000 x 1500 | 12.05 | 98.013 | 4000 x 2000 | 75.000 | 588.075 | |
| 3050 x 1525 | 12.05 | 98.013 | 5000 x 2500 | 75.000 | 588.075 | |
| 4000 x 1750 | 12.05 | 98.013 | 2000 x 1000 | 80.000 | 628.000 | |
| 4000 x 2000 | 12.05 | 98.013 | 2500 x 1250 | 80.000 | 628.000 | |
| 5000 x 2500 | 12.05 | 98.013 | 3000 x 1500 | 80.000 | 628.000 | |
| 6000 x 1500 | 12.05 | 98.013 | 4000 x 2000 | 80.000 | 628.000 | |
| 6000 x 2000 | 12.05 | 98.013 | 2000 x 1000 | 90.000 | 706.05 | |
| 6000 x 2500 | 12.05 | 98.013 | 2500 x 1250 | 90.000 | 706.05 | |
| 2000 x 1000 | 15 | 117.075 | 3000 x 1500 | 90.000 | 706.05 | |
| 2500 x 1250 | 15 | 117.075 | 4000 x 2000 | 90.000 | 706.05 | |
| 3000 x 1500 | 15 | 117.075 | 5000 x 2000 | 90.000 | 706.05 | |
| 4000 x 1750 | 15 | 117.075 | 2000 x 1000 | 100.000 | 785.000 | |
| 4000 x 2000 | 15 | 117.075 | 2500 x 1250 | 100.000 | 785.000 | |
| 4000 x 2500 | 15 | 117.075 | 3000 x 1500 | 100.000 | 785.000 | |
| 5000 x 2500 | 15 | 117.075 | 4000 x 2000 | 100.000 | 785.000 | |
| 6000 x 2500 | 15 | 117.075 | 5000 x 2500 | 100.000 | 785.000 | |
| 2500 x 1250 | 20 | 157.000 | 2000 x 1000 | 110.000 | 863.050 | |
| 3000 x 1500 | 20 | 157.000 | 2500 x 1250 | 110.000 | 863.050 | |
| 4000 x 2000 | 20 | 157.000 | 3000 x 1500 | 110.000 | 863.050 |
This steel truly shines in demanding roles where structural integrity is non-negotiable. You’ll often find S355J2G3 sheets and plates forming the framework for heavy-duty machinery, industrial plant equipment, and robust structural assemblies like bridges and high-rise buildings. Its dependable performance also makes it ideal for constructing vehicle chassis, trailers, and various support structures across the construction and engineering sectors. Essentially, it’s the material of choice when you need a trusted component that can bear substantial weight and withstand constant, heavy use.
Sayed Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Safat, Kuwait.
