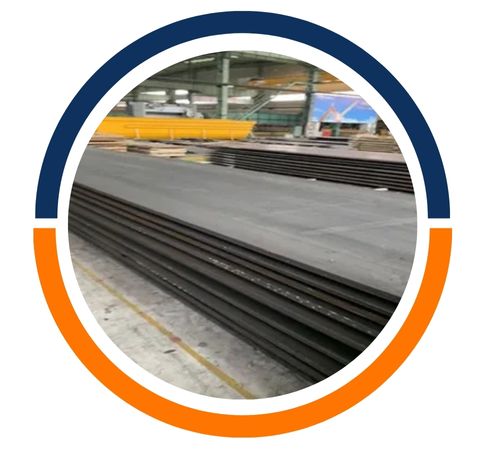

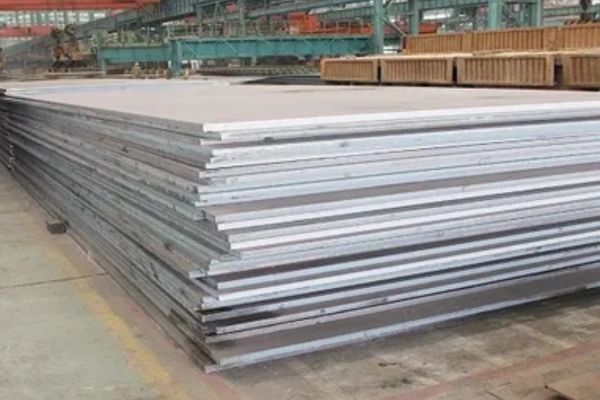

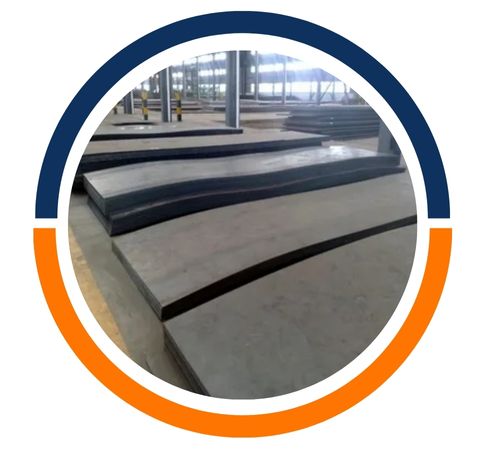

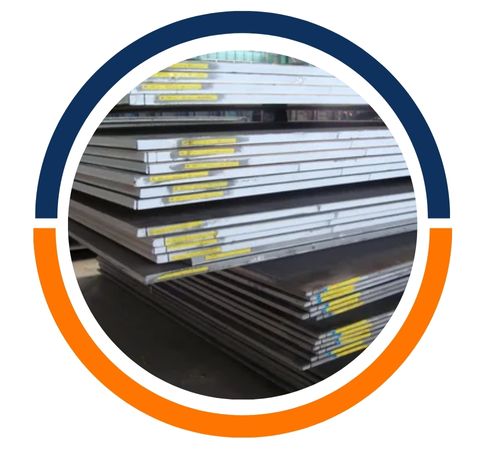

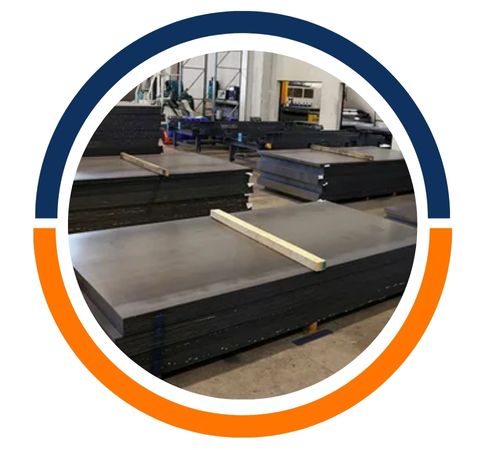

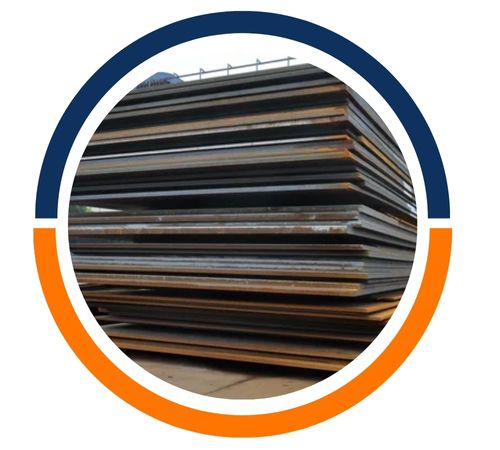

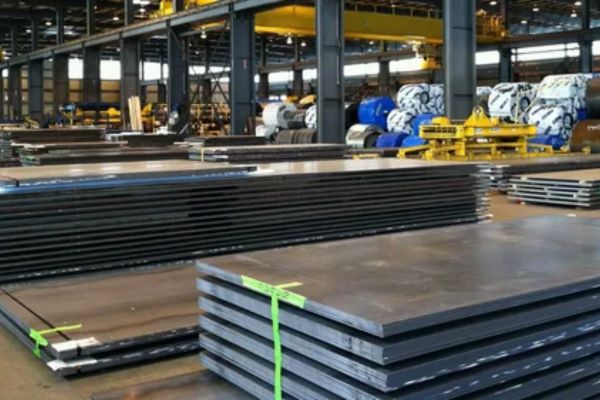

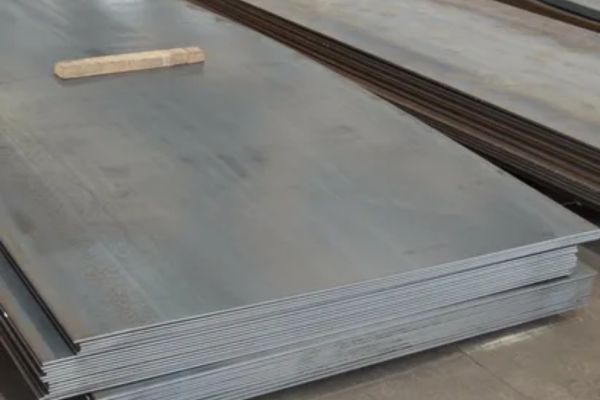

Sayed Steel, a trusted manufacturer and supplier located in Safat, Kuwait, specializes in high-quality SA 515 Grade 60 Sheets and Plates designed for high-temperature pressure vessel applications. These plates are celebrated for their outstanding heat resistance, remarkable strength, and reliable performance, making them a go-to choice in industries that demand durable carbon steel materials for elevated-temperature settings. With a commitment to strict quality control, precise fabrication, and timely delivery, Sayed Steel has earned a reputation as a dependable source for boiler manufacturers, petrochemical plants, refineries, and power generation sectors looking for top-notch plates built for long-lasting stability and efficiency in challenging service conditions.
The SA 515 Grade 60 Sheets and Plates are crafted from a blend of carbon, manganese, phosphorus, sulfur, and silicon in carefully controlled amounts, enhancing their strength and temperature resistance. These plates provide consistent tensile and yield strength, along with good ductility, which facilitates effective forming and welding processes. Specifically designed for high-temperature environments, SA 515 Grade 60 materials maintain stable mechanical performance, excellent heat resistance, and reliable structural integrity. Their well-balanced mechanical properties make them ideal for fabricating pressure vessels, boilers, and components exposed to heat that require exceptional durability and thermal stability.
| Specifications | ASTM A515 Gr. 60 / ASME A515 Grade 60 | |
| Thickness |
|
|
| Length | 3000 mm – 8000 mm | |
| Width | 1500-3500mm | |
| Form | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip, Flats, Blank (Circle), Ring (Flange) | |
| Finish | Cold rolled sheet (CR), Hot rolled plate (HR) | |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Grade | C | Mn | P | S | Si |
|---|---|---|---|---|---|
| A515 Grade 60 | 0.24-0.31 | 0.98 max | 0.035 max | 0.035 max | 0.13-0.45 |
| Grade | Thickness | Yield | Tensile | Elongation |
|---|---|---|---|---|
| A515 Grade 60 |  50-200mm | MPa -220 min | MPa – 415-550 | 21-25% |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
In various industries that rely on robust carbon steel for high-temperature applications, SA 515 Grade 60 Sheets and Plates are widely utilized. Their superior heat resistance and strength make them perfect for manufacturing boilers, steam drums, pressure vessels, and heat exchangers in refineries, petrochemical facilities, and power generation units. Additionally, these plates find applications in thermal processing equipment, industrial furnaces, and high-temperature storage tanks, where dependable structural performance is crucial. Their excellent weldability and formability further establish them as a preferred option for heavy-duty fabrication projects that demand long service life and safety.
Sayed Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Safat, Kuwait.
